Modelled Stucture
Method:Loop building
Teplate PDB:6LYY_A
Identity:100%
Minimized Score:-1124.011
Detail: Structure Info
Detail Information of Inter-species Structural Difference
| General Information of Drug Transporter (DT) | |||||
|---|---|---|---|---|---|
| DT ID | DTD0100 Transporter Info | ||||
| Gene Name | SLC16A1 | ||||
| Protein Name | Monocarboxylate transporter 1 | ||||
| Gene ID | |||||
| UniProt ID | |||||
| 3D Structure |
|
||||
| Inter-species Structural Differences (ISD) | |||||
| Mus musculus (Mouse) | |||||
| Gene Name | Slc16a1 | ||||
| UniProt ID | |||||
| UniProt Entry | |||||
| 3D Structure |
Method:Homology modeling Teplate PDB:6LYY_A Sequence Length:493 Identity:85.629% |
||||
| Click to Save PDB File in TXT Format | |||||
| Performance | Minimized Score | -1043.697 kcal/mol | |||
| Ramachandra Favored | Medium |
||||
| QMEANBrane Quality | High |
||||

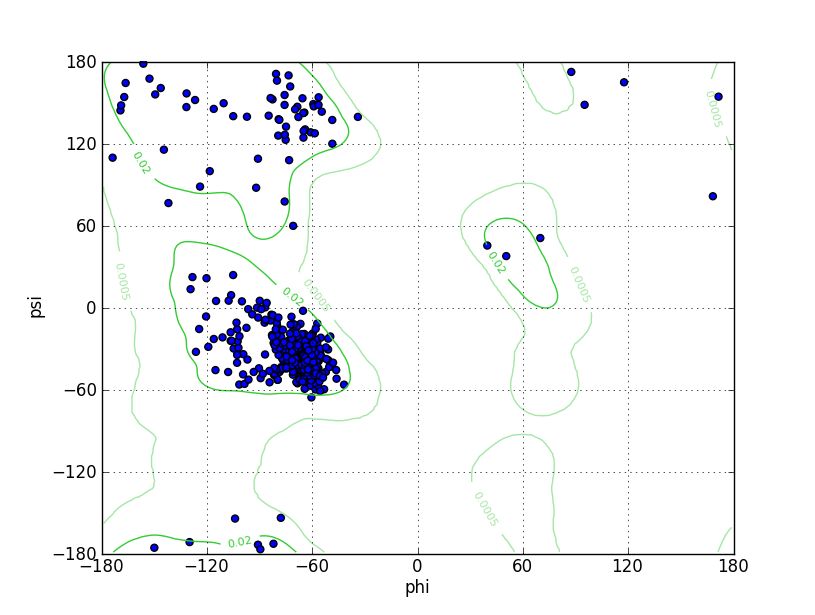

| Ramachandran Plot |
Ramz Z Score:-1.88 ±0.32 Residues in Favored Region:478 Ramachandran favored:97.35% Number of Outliers:2 Ramachandran outliers:0.41% |
||||
| Click to Save Ramachandran Plot in PNG Format | |||||

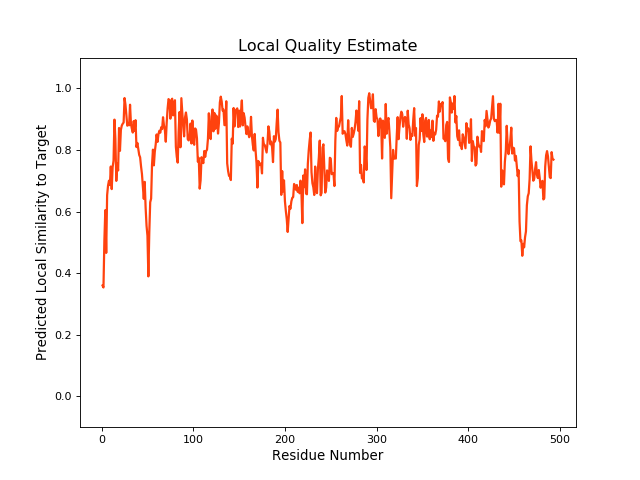

| Local Quality |
QMEANBrane Score:0.79 |
||||
| Click to Save Local Quality Plot in PNG Format | |||||
| Rattus norvegicus (Rat) | |||||
| Gene Name | Slc16a1 | ||||
| UniProt ID | |||||
| UniProt Entry | |||||
| 3D Structure |
Method:Homology modeling Teplate PDB:6LYY_A Sequence Length:494 Identity:84.631% |
||||
| Click to Save PDB File in TXT Format | |||||
| Performance | Minimized Score | -1074.323 kcal/mol | |||
| Ramachandra Favored | Excellent |
||||
| QMEANBrane Quality | High |
||||

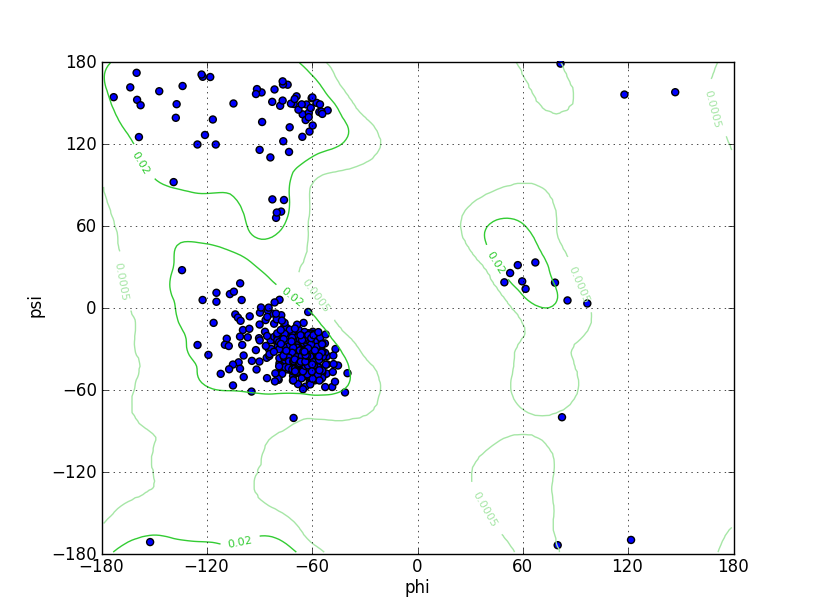

| Ramachandran Plot |
Ramz Z Score:-2.13 ±0.32 Residues in Favored Region:484 Ramachandran favored:98.37% Number of Outliers:2 Ramachandran outliers:0.41% |
||||
| Click to Save Ramachandran Plot in PNG Format | |||||

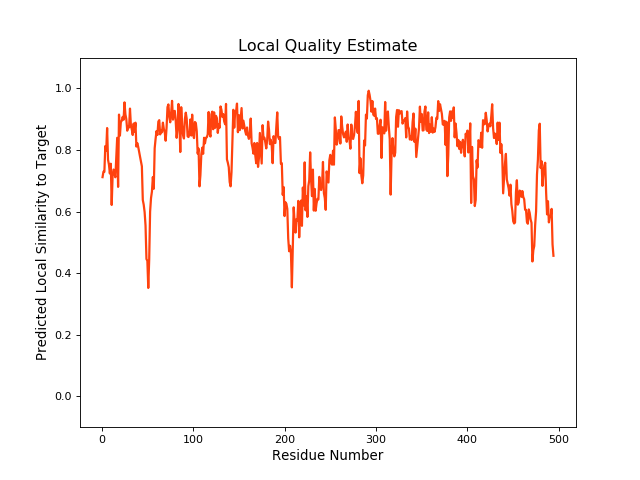

| Local Quality |
QMEANBrane Score:0.79 |
||||
| Click to Save Local Quality Plot in PNG Format | |||||
| Bos taurus (Bovine) | |||||
| Gene Name | SLC16A1 | ||||
| UniProt ID | |||||
| UniProt Entry | |||||
| 3D Structure |
Method:Homology modeling Teplate PDB:6LYY_A Sequence Length:501 Identity:84.032% |
||||
| Click to Save PDB File in TXT Format | |||||
| Performance | Minimized Score | -1121.552 kcal/mol | |||
| Ramachandra Favored | Medium |
||||
| QMEANBrane Quality | High |
||||

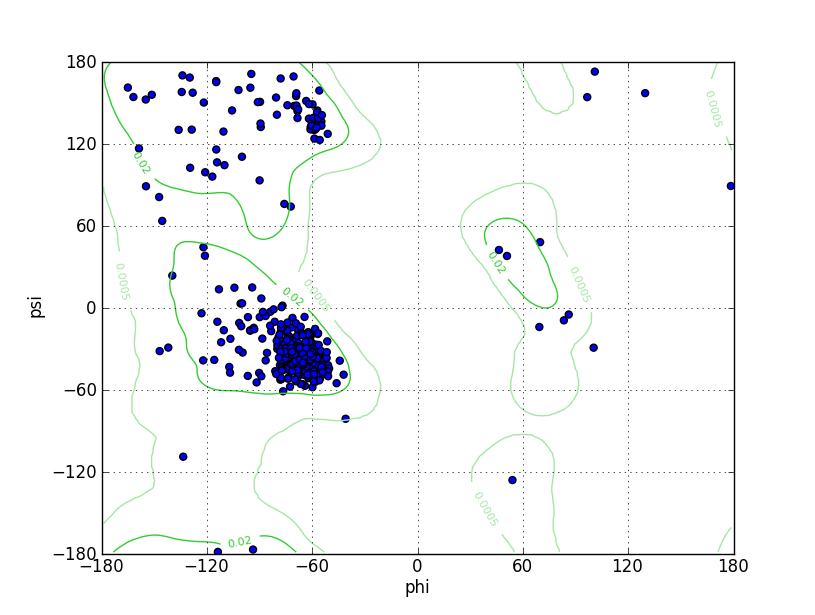

| Ramachandran Plot |
Ramz Z Score:-1.71 ±0.33 Residues in Favored Region:487 Ramachandran favored:97.60% Number of Outliers:3 Ramachandran outliers:0.60% |
||||
| Click to Save Ramachandran Plot in PNG Format | |||||

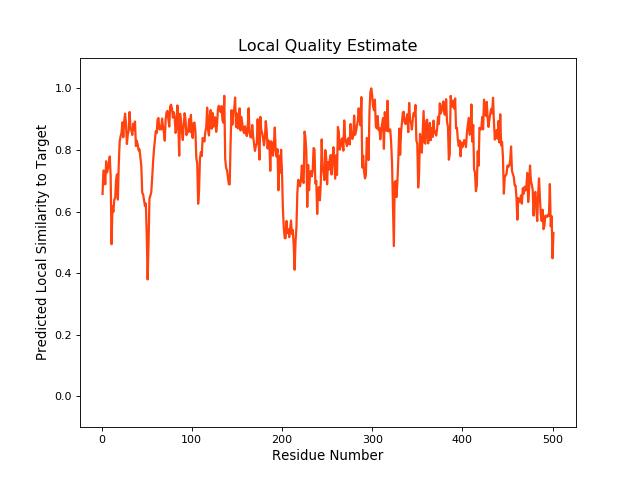

| Local Quality |
QMEANBrane Score:0.79 |
||||
| Click to Save Local Quality Plot in PNG Format | |||||
